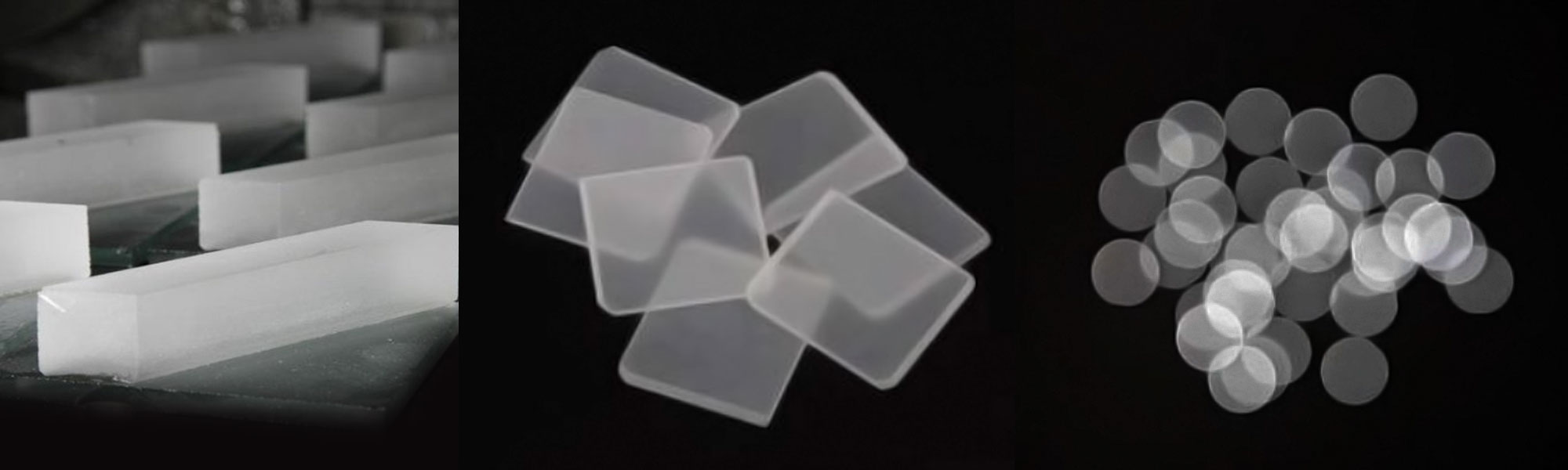

• slide blanks 1

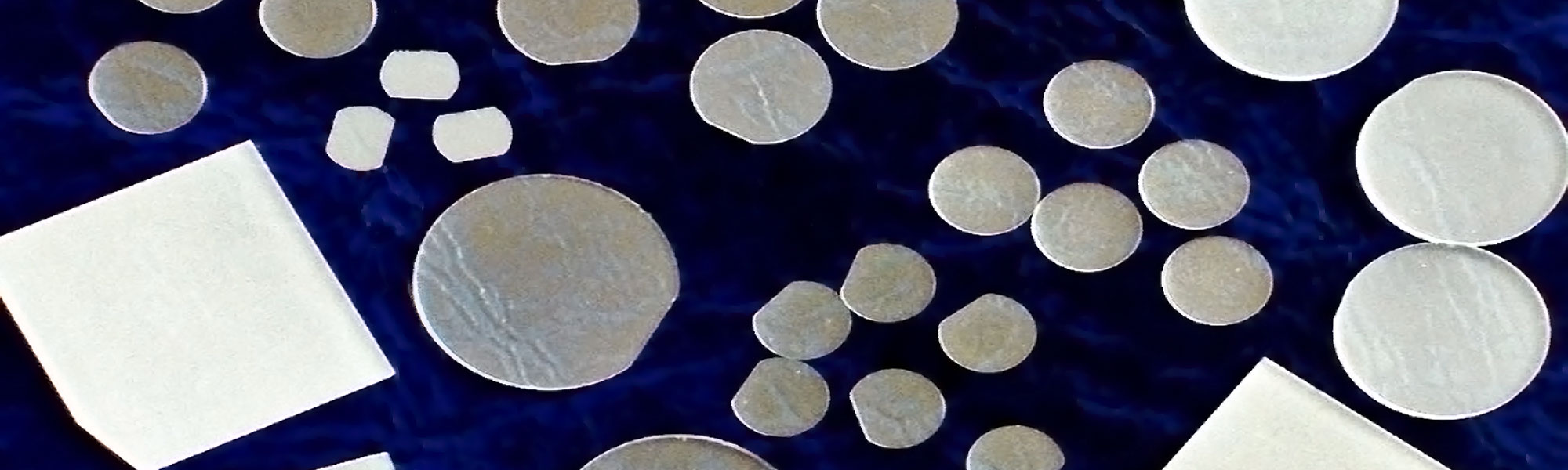

  • slide blanks 2
  • Singly and doubly rotated quartz crystal blanks and wafers
  • Singly and doubly rotated quartz crystal blanks and wafers

Request for quote (RFQ)



excel iconDownload RFQ Round blanks / Lenses (85,0 kB)

excel iconDownload RFQ Strip blanks / Blanks for SM (80,0 kB)

excel iconDownload RFQ Wafers (81,5 kB)




Basic Quality Parameters of Delipro Blanks



Material: Pure Z-zone of quartz crystal
Q value: Typically above 1.8 *106, on request > 2.4 *106
Etch channel density: Typically maximum 100/cm2, on request max. 30/cm2
Blank surface finish: # 1000, #2000, # 3000, #4000 and polished (max. 1 interference light band in the 80% of the blank central part)





Blank form Shape / finish Cut family Thickness min/max Blank size
Square wafers Lapped to frequency or thickness AT, IT, SC, other (Y+5°, AC) 0,06 - 1,20 mm AT-cut: max. 20x20mm
IT/SC-cut: max.31x31mm
Round blanks
(with or without flat,
acc. to request:
i.e. position, size
and number of flats)
P-P lapped (3um or 1um Al2O3) AT, IT, SC, other (Y+5°, AC) 0,05 - 1,20 mm

AT-blanks from shelf:
Dia 4.7 mm, flat 0.4mm,
Dia 5.6 mm, flat 0.4mm,
Dia 5.8 mm, flat 0.6 mm,
Dia 8.0 mm, flat 0.5 mm;
On request any Dia and flat
SC-blanks: Max. 16.0 mm,
with any flat size

P-P lapped and etched
P-P polished
Beveled blanks (eventually etched)
Biconvex - barelled (eventually etched)
Planconvex (lenses) (eventually etched)
Strip blanks
and blanks for SM -crystals
P-P lapped (3um alebo 1um Al2O3) AT, Y+5° 0,05 - 0,150 mm

Design optimization possible:
min length 3.5 mm,
max. length 8.2 mm,
min. width 1.6 mm,
max. width 2.5 mm

P-P lapped and etched
P-P polished
Beveled blanks (eventually etched)
Contoured blanks (eventually etched)
*Notice: Supplies of SC-cut blanks are coordinated with participation of our business partner.





Max. achievable cut angle accuracy:
AT-cut: Phi = 10 min, Theta = 15 sec
IT & SC-cut: Phi = 1 min, Theta = 5 sec
AC-cut: Phi = 10 min, Theta = 20 sec
Cut Y+5°: Phi = 10 min, Theta = 30 sec

Typical ranges of delivered cut angles of the blanks:
AT-cut: Phi = ± 15 min, Theta = ± 1 min
IT & SC-cut: Phi = ± 2 min, ± 5 min and ± 8 min,
Theta = above ± 15 sec
AC-cut: Phi = ± 15 min, Theta = ± 2 min
Cut Y+5°: Phi = ± 15 min, Theta = ± 3 min
